本文我們講解一個人事入職的小場景,該場景可以不用集成簽章廠商,用于企業內部簽字,簽字完成后用于存檔。

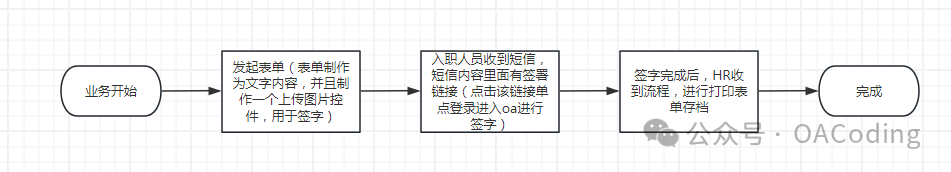

大致簽字流程如下:

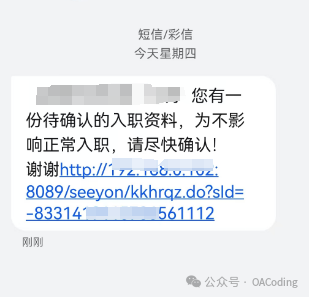

用戶收到短信:

點擊上面的鏈接,單點登錄進入oa進行簽署,如下:

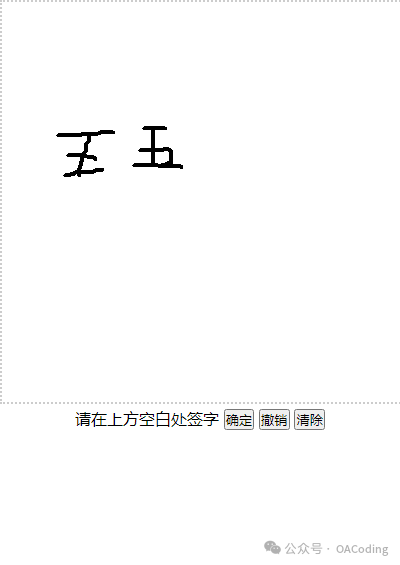

開發制作一個自定義按鈕,點擊按鈕,進入到簽署界面,簽署界面如下:自定義按鈕和自定義控件

簽署界面代碼為H5的,如下:
<!DOCTYPE html>
<html class="no-js">
<head>
<meta name="viewport"
content="width=device-width, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0,user-scalable=no,viewport-fit=cover">
<meta http-equiv="Cache-Control" content="no-cache, no-store, must-revalidate" />
<meta http-equiv="expires" CONTENT="Wed, 26 Feb 1997 08:21:57 GMT">
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta http-equiv="Pragma" content="no-cache">
<meta http-equiv="Cache" content="no-cache">
<meta http-equiv="Expires" content="0">
<meta charset="utf-8">
<title>簽字</title>
<style>
* {
margin: 0;
padding: 0;
}
html,
body {
width: 100%;
height: 100%;
text-align: center;
}
canvas {
max-width: 100%;
border: 2px dotted #ccc;
}
</style>
</head>
<body>
<script type="text/javascript" src="${path}/seeyon/apps_res/plugin/cqpjdyz/index.js"></script>
<script>
var sign = new Draw( {
lineWidth: 10,
width: 400,
height: 400,
strokeStyle: '#333333'
} );
window.onload = function () {
document.querySelector( '.ouput' ).onclick = function () {
if(!confirm('此操作會把簽名提交到OA,確定提交嗎?')){
return false;
}
var img = new Image();
img.style.width = '200px';
img.src = sign.ouput();
img.onload = function () {
document.body.appendChild( img );
}
if(sign.state.undopath.length == 0){
alert("請先簽字后,在提交!");
return false;
}else{
document.querySelector( 'img' ) && document.querySelector( 'img' ).remove();
document.getElementById("imgcontent").value=img.src;
document.getElementById("editForm").submit();
}
}
document.querySelector( '.clear' ).onclick = function () {
sign.clear();
}
document.querySelector( '.undo' ).onclick = function () {
if ( sign.state.undopath.length > 0 ) {
sign.undo();
} else {
alert( '還沒有簽名' );
}
}
}
</script>
<div class="buttons">
<font>請在上方空白處簽字</font>
<button type="button" class="btn btn-primary ouput">確定</button>
<button type="button" class="btn btn-light undo">撤銷</button>
<button type="button" class="btn btn-light clear">清除</button>
</div>
<form id="editForm" name="editForm" method="post" action="kkhrqz.do?method=saveimg" >
<input type="hidden" id="imgcontent" name="imgcontent" />
<input type="hidden" id="moduleId" name="moduleId" value="${moduleId }" />
</form>
</body>
</html
簽署完成的其實就是一個圖片章,然后把圖片上傳到oa的上傳圖片控件。
簽署完成后,我們會把跳轉到另外一個簽署成功界面,可以返回查看簽字頁面
保存上傳圖片控件的代碼如下:
FormBean formBean = formApi4Cap4.getForm(cs.getFormAppid());
FormDataMasterBean formDataMasterBean = formApi4Cap4.findDataById(cs.getFormRecordid(), cs.getFormAppid(), null);
formDataMasterBean.addFieldValue(fieldBean.getColumnName(),String.valueOf(subReference));
formApi4Cap4.saveOrUpdateFormData(formDataMasterBean, formBean.getId(), true);
到此完成。
